External Storage

The External Storage Support application enables you to mount external storage services and devices as secondary Nextcloud storage devices. You may also allow users to mount their own external storage services.

Enabling

External Storage Support is provided by a bundled (automatically installed) app. It is disabled by default, so to use this feature you simply need to enable it under Apps.

Enable external storage on your Apps page.

Configuring

To access the settings for configuring external storage mounts, click your Profile icon and select Settings from the dropdown. On the left side, under Administration, select External Storage.

Note

External storage can also be configured via the occ command. See occ documentation.

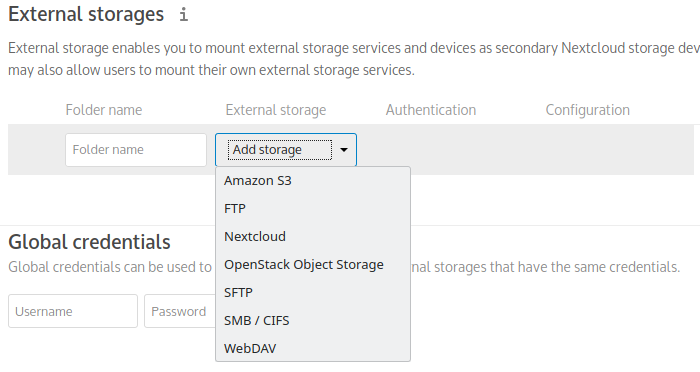

To create a new external storage mount, select an available backend from the Add storage dropdown. Each backend has different required options, which are configured in the configuration fields.

Each backend may also accept multiple authentication methods. These are selected with the dropdown under Authentication. Different backends support different authentication mechanisms; some are specific to the backend, while others are more generic. See External Storage authentication mechanisms for more detailed information.

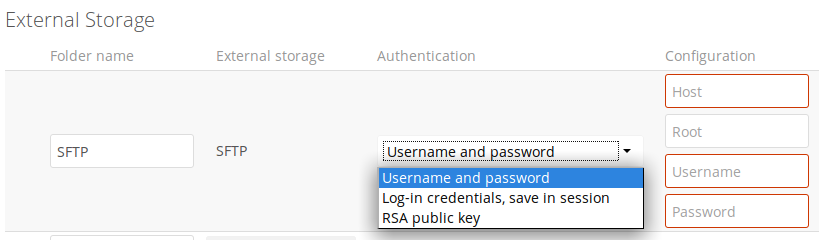

When you select an authentication mechanism, the configuration fields change as appropriate for the chosen mechanism. For example, the SFTP backend supports Username and password, Log-in credentials, save in session, and RSA public key.

Required fields are marked with a red border. When all required fields are filled, the storage is automatically saved. A green dot next to the storage row indicates the storage is ready for use. A red or yellow icon indicates that Nextcloud could not connect to the external storage, so you need to re-check your configuration and network availability.

If there is an error on the storage, it will be marked as unavailable for ten minutes. To re-check it, click the colored icon or reload your Admin page.

Folder name

The Folder name is the name the folder will have within Nextcloud - the name that will be visible to NextCloud users.

Note that the folder name cannot include a path or subdirectory - do not include slashes in your Folder name.

Usage of variables for mount paths

The external storage mounting mechanism accepts variables in the mount path.

Use $user for automatic substitution with the logged-in user’s username.

Use $home for automatic substitution with a configurable home directory variable (requires LDAP; see Special attributes in the LDAP configuration documentation for details).

In the following example, the mount point for a logged-in user “alice” would resolve to /opt/userDirectories/alice/myPictures.

External storage user variable substitution

User and Group Permissions

A storage configured in a user’s personal settings is available only to the user who created it. A storage configured in the Admin settings is available to all users by default, but it can be restricted to specific users and groups in the Available for field.

Mount Options

The overflow menu (three dots) exposes the settings and trashcan icons. Click the trashcan to delete the mount point. The settings button allows you to configure each storage mount individually with the following options:

Encryption
Previews
Enable Sharing
Filesystem check frequency — controls how the server rescans an external storage path when a WebDAV PROPFIND request arrives for it. Once per direct access makes a shallow rescans on each PROPFIND request; Never skips the rescan entirely. This setting does not cause Nextcloud or desktop clients to poll automatically. See Detecting changes made outside Nextcloud for details.
Mac NFD Compatibility
Read Only

The Encryption checkbox is visible only when the Encryption app is enabled. Note that server-side encryption is not available for other Nextcloud servers used as external storage.

Enable Sharing allows the Nextcloud admin to enable or disable sharing on individual mount points. When sharing is disabled, the shares are retained internally so that you can re-enable sharing and the previous shares become available again. Sharing is disabled by default.

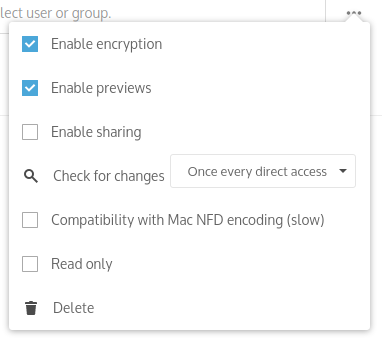

Additional mount options exposed on mouseover.

Using Self-Signed Certificates

When using self-signed certificates for external storage mounts, the certificate must be imported into the personal settings of the user. Please refer to Nextcloud HTTPS External Mount for more information.

Available Storage Backends

The following backends are provided by the external storages app.

Note

A non-blocking or correctly configured SELinux setup is needed for these backends to work. Please refer to SELinux configuration.

Allow Users to Mount External Storage

Check Enable User External Storage to allow your users to mount their own external storage services, and check the backends you want to allow. Beware, as this allows a user to make potentially arbitrary connections to other services on your network!

Detecting changes made outside Nextcloud

When files are added, modified, or deleted on an external storage directly (without going through Nextcloud), Nextcloud will not know about those changes immediately. Nextcloud maintains an internal index (the filecache) that is only updated when Nextcloud itself performs a scan. Until that scan happens, the filecache is stale and the changes are invisible to Nextcloud, desktop clients, and mobile apps.

How the “Filesystem check frequency” option works

The Filesystem check frequency mount option (see Mount Options) controls what happens when a WebDAV PROPFIND request reaches the Nextcloud server for a path inside the external storage:

Once per direct access — during PROPFIND requests made to a given directory, Nextcloud rescans that directory level then updates the filecache with what it finds there.
Never — the server never rescans the external storage during PROPFIND requests and always returns the content stored in its internal index.

This option is only about the server’s behavior during a PROPFIND. It does not trigger any background polling and does not change how desktop clients or mobile apps behave.

Because this rescan is driven by user actions (opening a folder in the web UI, browsing in the mobile app, or a client issuing a PROPFIND), change detection remains random and unreliable for deep folder hierarchies.

Why desktop clients miss deep changes

The desktop sync client only issues a PROPFIND on the root of the sync folder on every sync cycle because scanning the entire tree would be too expensive. It relies on etag propagation: when a file changes, the etag of every parent folder up to the root must also change, giving the client a trail to follow down to the changed file.

When a change is made outside Nextcloud, no etag is updated. The client sees no trail from the root and never follows it down to the changed file.

How to make external changes reliably detectable

There are two approaches, depending on the storage type:

A) SMB/CIFS storages — use update notifications

The files_external:notify command listens for change events sent by the SMB server itself. When a change event arrives, Nextcloud rescans the affected path and propagates the etag changes up to the root, so desktop clients pick up the change on their next sync cycle.

occ files_external:notify <mount_id>

See SMB/CIFS for setup details, including authentication requirements and how to reduce sync delay.

B) All other storages — periodic rescan via cron

For storage types that do not support push notifications, set up a cron job that rescans the external storage periodically using its mount ID:

sudo -E -u www-data php occ files_external:scan <mount_id>

You can find the mount ID with occ files_external:list. See Using the occ command for the full files_external:scan reference. A typical interval is every 15 minutes; adjust to balance freshness against server load.

Note

If you are running Nextcloud AIO, the equivalent command is:

sudo docker exec --user www-data -i nextcloud-aio-nextcloud php occ files_external:scan <mount_id>

Limitation: renames are not detected reliably

Whenever Nextcloud rescans an external storage — whether via periodic cron (option B) or via the Once per direct access filesystem check frequency setting — the scanner cannot reliably detect that an entry was renamed. It sees the old name as deleted and the new name as a newly created entry. This causes metadata loss: all shares, tags, comments, and activity history associated with the old entry are permanently deleted from Nextcloud’s database.

Warning

If users rename files or folders directly on the external storage (outside Nextcloud), that metadata loss is unavoidable. To preserve metadata, all renames should be done through Nextcloud itself, or — for SMB — use update notifications (option A) which handles renames via the SMB change event stream.

Troubleshooting File Name Encoding

When using external storage, it can happen that some files with special characters will not appear in the file listing, or they will appear but not be accessible.

When this happens, please run the files scanner, for example:

sudo -E -u www-data php occ files:scan --all

If the scanner reports an encoding issue on the affected file, please enable Mac encoding compatibility in the mount options and then rescan the external storage.

Note

This mode comes with a performance impact because Nextcloud will always try both encodings when detecting files on external storages.

Mac computers use the NFD Unicode normalization for file names, which is different from NFC, the one used by other operating systems. Mac users might upload files directly to the external storage using NFD-normalized file names. When uploading through Nextcloud, file names will always be normalized to the NFC standard for consistency.

It is recommended to let Nextcloud use external storages exclusively to avoid such issues.
